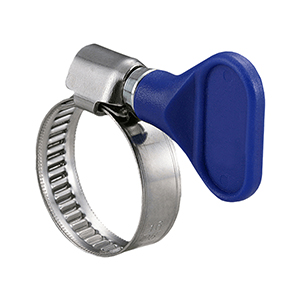

SPECS:
► Band width: 9mm
► Band thickness: 0.6mm
► Material: W2 stainless steel
► Meeting the DIN 3017 standard
► Under RoHS & REACH standard

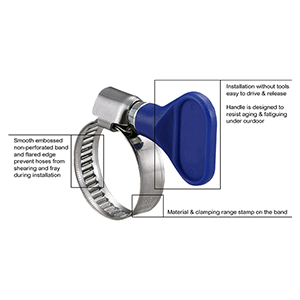

► Non-perforated band and flared edge prevent hoses
from damaging during installation
► Installation without tools
|
Item No. |
Clamping Range (Size, Diameter) |
|
( mm ) |
( inch ) |
|
IS01040 |
8 ~ 12 mm |
5/6" ~ 1/2" |
|
IS01040-01 |
10 ~16 mm |
3/8" ~ 5/8" |
|
IS01040-02 |
12 ~ 20 mm |
1/2" ~ 3/4" |
|
IS01040-03 |
12 ~ 22 mm |
1/2" ~ 7/8" |
|
IS01040-04 |
16 ~ 25 mm |
5/8" ~ 1" |
|
IS01040-05 |
16 ~ 27 mm |
5/8" ~ 1-1/16" |
|
IS01040-06 |
20 ~ 32 mm |
3/4" ~ 1-1/4" |
|
IS01040-07 |
25 ~ 40 mm |
1" ~ 1-5/8" |
|
IS01040-08 |
30 ~ 45 mm |
1-3/16" ~ 1-3/4" |
|
IS01040-09 |
32 ~ 50 mm |
1-1/4" ~ 2" |
|
IS01040-10 |
40 ~ 60 mm |
1-5/8" ~ 2-3/8" |
|
IS01040-11 |
50 ~ 70 mm |
2" ~ 2-3/4" |
|
IS01040-12 |
60 ~ 80 mm |
2-3/8" ~ 3-1/8" |
|
IS01040-13 |
70 ~ 90 mm |
2-3/4" ~ 3-1/2" |
|
IS01040-14 |
80 ~ 100 mm |
3-1/8" ~ 4" |
|
IS01040-15 |
90 ~ 110 mm |
3-1/2" ~ 4-3/8" |
|
IS01040-16 |
100 ~ 120 mm |
4" ~ 4-3/4" |
|
