SPECS:
► Band width: 9 mm
► Band thickness: 0.6 mm
► Hex. head screw are available
► Material: W2 (430 stainless steel)
► Installation torque: 3.0 Nm (26 in-lbs)
► Under RoHS & REACH standard
|
Item No. |
Band
width |
Pipe dia. |
Min |
Max |
Hand |
|
(inch) |
(mm) |
(inch) |
(mm) |
(inch) |
(mm) |
|
IS01049 |
9 mm |
2-1/2" |
65 |
2-1/4" |
57 |
2-7/8" |
73 |

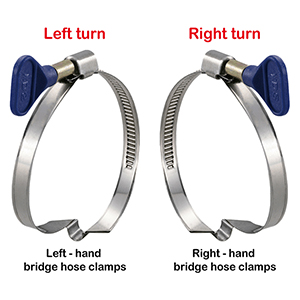

Left |
|
IS01049-01 |
Right |
|
IS01049-02 |
4" |
100 |
3-3/4" |
95 |
4-3/8" |
111 |
Left |
|
IS01049-03 |
Right |
|
