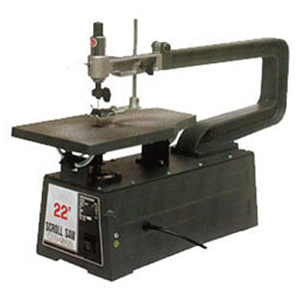

| SCROLL SAW |
|
SPECS:
|
item NO. |
LS00358 |
LS00358-01 |
|
Max. Depth of cut |
Wood/ 40mm |
Metal/ 10mm |
|
Throat capacity |
460mm |
560mm |
|
Length of stroke |
20mm |
20mm |
|
Speeds(rpm) |
950(50Hz) |
1150(60Hz) |
|
Size of table |
200 × 350 |
200 × 350 |
|
Table tilts |
45°(L)~45°(R) |
45°(L)~45°(R) |
|
Power |
1/6HP, 6P,
Single phase
|
1/6HP, 6P,
Single phase
|
|
Net weight |
20kgs |
22kgs |
|
Gross weight |
21kgs |
23kgs |
|
CUFT |
2.85' |
3.38' |
|
Machine dimension |
661 × 48 ×
261mm
|
761 × 48 ×
261mm
|
|
|
|
 |
|
|
|
|
