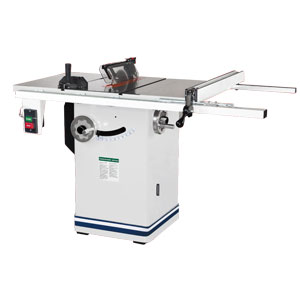

SPECS:
|
Item No. |
LS00124 |
|
Speed: |
4200 RPM |
|
Diameter of arbor: |
5/8" (16mm) |
|
Diameter of sawblade: |
10" (254mm) |
|
Max. Depth of cut: |
3-1/16" (78mm) |
|
Max. Depth of cut at 45°: |
2-1/16" (53mm) |
|
Distance in front of blade: |
10-1/2" (266mm) |
|
Table: |
686(L) x 512(W) mm |
|
Extension wing: |
686(L) x 304(W) mm |
|
Motor: |
2 HP |
|
N.W. / G.W.: |
138kgs / 171kgs |
|
Packing dimensions: |
68 x 89 x 129cm |
|
Rail: |
154 x 9 x 9cm |
* All specifications, dimensions and design
characteristics shown are subject to change without
prior notice.
FEATURES:
► Ruggedly constructed saw carriage provides
maximum cutting stability.
► With stable quality and minimum operation vibration.
► Heavy, precision-machined trunnion ensures
accurate saw tilting from 0 degree to 45 degrees.
► The blade guard and riving knife can perform vertical
adjustment with the saw blade.
► The blade guard can be dismount easily to facilitate
maintenance purpose.
► The saw blade tilting and raising action are
conveniently controlled by the hand wheels.
► The riving knife / spreader can be dismounted quickly.
► The spreader can perform vertical adjustment with the
saw blade
REMARK:
► Available motor in 3 HP
PACKING:
► Carton box + plywood case
|
