SPECS:
|
Motor: |
2HP, 220V, single phase |
|
Work piece holding thickness: |
15 To 40mm |
|
Table size: |
27.3/5" (W) x 19.3/5" (D) |
|
Table high: |
34" |
|
Spindle speed: |
3500 RPM |
|
Power transfer:
direct drive air consumption:
|
9 BAR |
|
Over all dimension: (W x D x H) |
36.3/5" x 22.2/5" x 47.4/5" |
|
Machine weight: |
169 LBS |
FEATURES:
► One position of the spindle head is dedicated to
the blum hinge boring pattern
► Pneumatic clamp and spindle up and down travel

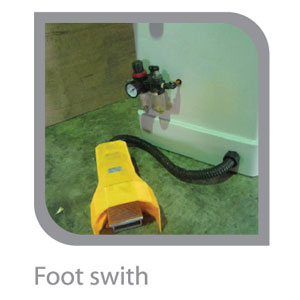

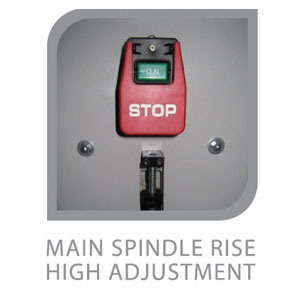

► Foot controller for main spindle rise
► Mdf strong table
PACKING:
► Wooden case
|
