SPECS:
► Pneumatic motor driven, spark-free and safe operation
► Bubble-assisted cleaning effectively removes oil sludge
and contaminants from A/C lines
► Automatic circulation provides continuous and efficient
pipeline flushing
► Supports hydraulic and pneumatic leak testing
► Helps extend the lifespan of compressors and A/C systems
► Works best with LS00337 cleaner and LS00336 adapters for
higher efficiency
► Dual filtration system (100-mesh + 5-micron filter) effectively
removes impurities and protects the machine
|
Item No. |
LS00330 |
|
Capacity |
2L |
|
Used pressure |
5~7 kg/cm2 |
|
Power |
Air pressure/AP-35 |
|
Machine size |
450 x 340 x 900 mm |
|
Discharge style |
Air pressure |
|
Packaging |
4.5' |
|
N.W. |
18 kgs |
|
G.W. |
20.5 kgs |

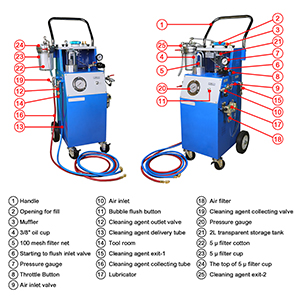

CONTENTS:
|
1. Handle |
10. Air inlet |
19. Cleaning agent
collecting valve |
|
2. Opening for fill |
11. Bubble flush button |
20. Pressure gauge |
|
3. Muffler |
12. Cleaning agent
outlet valve |
21. 2L transparent
storage tank |
|
4. 3/8" oil cup |
13. Cleaning agent
delivery tube |
22. 5 μ filter cotton |
|
5. 100 mesh filter
net
|
14. Tool room |
23. 5 μ filter cup |
6. Starting to flush
inlet valve |
15. Cleaning agent
exit-1 |
24. The top of
5 μ filter cup |
|

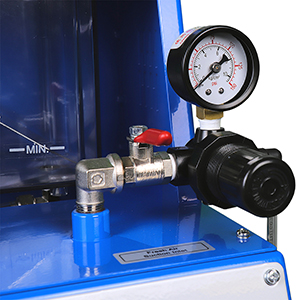

7. Pressure gauge |
16. Cleaning agent
collecting tube |
25. Cleaning agent
exit-2 |
|
8. Throttle Button |
17. Lubricator |
|
|
9. Air inlet valve |
18. Air filter |
|
|
